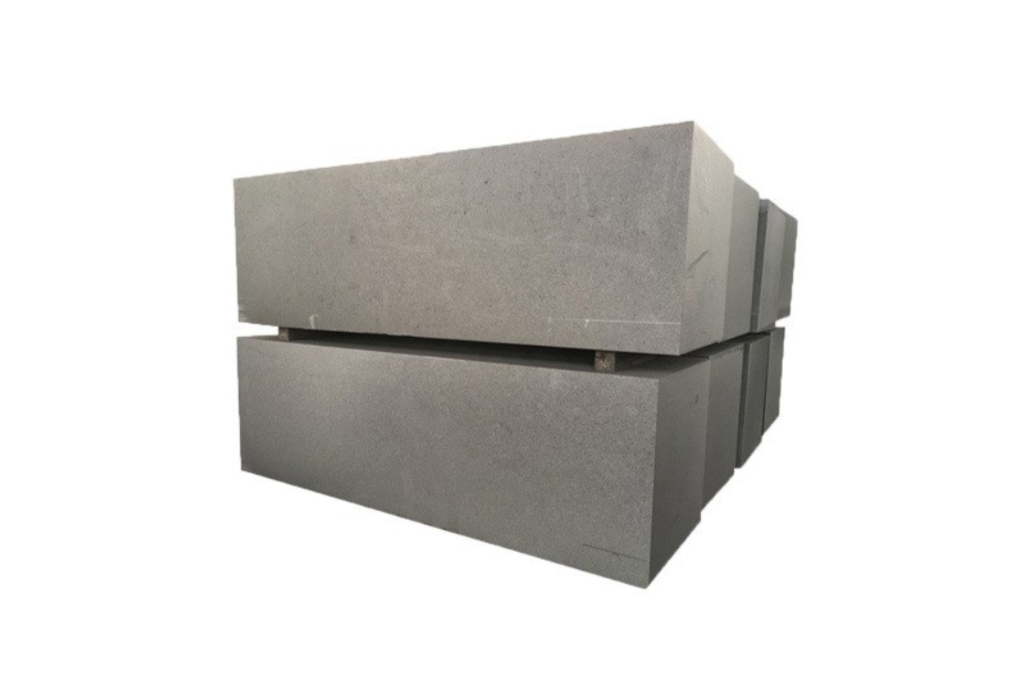

¿Para qué se utilizan los bloques de grafito?

In the field of materials science, graphite blocks have become key materials for industrial production and technological innovation. It has unique physical and chemical properties such as high melting point, excellent electrical and thermal conductivity, low coefficient of friction and chemical stability. These enable it to adapt to extreme working conditions. From high-temperature furnaces to semiconductor chips, from clean energy to aerospace, bloques de grafito are widely used.

Industrial Manufacturing Field

Industria metalúrgica

Furnace Sealing

During the metallurgical production process, the interior of the furnace is often exposed to a high-temperature environment above 1500℃and highly corrosive gases. Graphite block has outstanding high-temperature resistance and chemical stability so it is the ideal material for furnace sealing. You can process it into sealing gasket or sealing ring, which effectively blocks the leakage of high-temperature gases. And it can also resists the erosion of corrosive gases such as sulfides and oxides inside the furnace. Thus significantly improving the thermal efficiency of the furnace and reducing energy waste.

Heating Element

Graphite block has high electrical conductivity and low coefficient of thermal expansion, which  make it the core material for metallurgical heating elements. In equipment such as electric arc furnaces and induction furnaces, you can use it as heating elements. It can convert electrical energy into high-temperature thermal energy in an instant and meet the extreme temperature conditions required for metal smelting. Graphite electrodes can maintain structural stability at temperatures above 2000℃. Compared with traditional metal heating elements, their service life is extended by 3 to 5 times. This significantly reduces equipment maintenance costs and downtime.

Powder Metallurgy

Its self-lubricating property makes graphite block mainly used in mold manufacturing and pressing processes. It can significantly reduce the friction during the powder pressing process, which makes the powder distribution more uniform. And it avoids product defects caused by the adhesion between the mold and the material. Meanwhile, its high-temperature resistance of ensures that it maintain dimensional accuracy during sintering processes above 1000℃. So it can be used to facilitate the production of high-precision and complex-shaped powder metallurgy components. Such as oil-impregnated bearings for automotive engines and hard alloy cutting tools.

Mechanical processing

Moho

Graphite blocks play a significant role in the fields of injection molds and die-casting molds. Compared with metal molds, its density is only 1/3 to 1/5 of that metal molds. So it significantly reduces the weight of the molds and lowers the load and energy consumption of the equipment. And its high thermal conductivity can increase the cooling rate of the mold by 30% to 50%, which significantly shortens the product forming cycle.

Heating Elements

In the heat treatment process of mechanical processing, you can use graphite blocks to process graphite heating elements. Because it can precisely control the temperature, graphite heating elements can achieve annealing, quenching and other process treatments on metal materials. And it ensures that the materials obtain ideal mechanical properties. It can control the temperature uniformity error within ±2℃, far superior to traditional resistance wire heating elements. So it provides a stable guarantee for the processing of precision mechanical parts.

EDM

You can also use graphite blocks as electrode materials in electrical discharge machining (EDM). Graphite electrodes have the characteristics of light weight, fast processing speed and low loss rate which is only 1/3 of that of copper electrodes. And the application of graphite electrodes enables the processing accuracy to reach the micrometer level. Therefore, they are especially suitable for the processing of complex cavities. Such as in the processing of aero engine blades, precision parts of medical devices and etc.

Energy-related fields

Nuclear reactor

In nuclear reactors, graphite blocks play a crucial role. As a moderator and reflective layer material in nuclear reactors, graphite can reduce the speed of neutrons, making them more easily absorbed by nuclear fuel and thus maintaining the stable progress of nuclear reactions. The chemical stability and high-temperature resistance of graphite enable it to work reliably for a long time in the high-temperature and strongly radiated environment of nuclear reactors. Meanwhile, its excellent mechanical properties ensure the stability of the reactor structure, which is of great significance for guaranteeing the safe operation of nuclear reactors.

Battery manufacturing

Graphite block is an important component of the anode materials for lithium-ion batteries. Its layered structure makes it can provide channels for the intercalation and deintercalation of lithium ions. So it has a high specific capacity and good cycling stability. Using it as the negative electrode material gives lithium-ion batteries the advantages of high energy density, fast charging and discharging speed, and long service life. You can widely use it in electric vehicles, mobile phones, laptops and other fields.

Electronics and Semiconductors Field

Disipación del calor de los dispositivos electrónicos

Graphite blocks have excellent thermal conductivity so they can be used to make heat sinks or substrates. They can efficiently transfer heat and reduce the temperature of components. And graphite is lighter and more flexible, which is better than metal heat dissipation materials. Moreover, it meets the development needs of miniaturization and thinness of electronic devices and ensures the stable operation of the equipment.

Fabricación de semiconductores

In semiconductor manufacturing, graphite blocks are used to make various components. Because of the high-temperature resistance and chemical stability, it can hold silicon raw materials and prevent contamination, ensuring the quality of wafers. In addition, you can also use it in the manufacture of heating elements, fixtures, etc. It can provide stable support for semiconductor processes and enhance product quality and production efficiency.

Otros campos

Lubricating materials

With its excellent lubricity, graphite block is made into solid lubricants, greases, lubricating oils, etc., which is widely used in mechanical equipment. Even under special working conditions such as high temperature, high pressure and high vacuum, it can significantly reduce the friction and wear between mechanical components. And it can effectively extend the service life of equipment and improve operational efficiency. So it is an ideal lubricating material in special environments.

Sector aeroespacial

You can use graphite blocks as lightweight and high-temperature resistant materials in aerospace industry. The graphite-based composite material at the throat liner of the rocket engine nozzle can withstand high-temperature gas above 3000℃. The flexible graphite heat dissipation film of the satellite solar panel can adapt to extreme temperature differences ranging from -200℃ to 150℃. And it can ensure the stable operation of the equipment.

Chemical Engineering and Environmental Protection

Due to the strong chemical stability, you can use graphite blocks to manufacture corrosion-resistant reaction vessels and pipelines. In terms of environmental protection, graphite can purify sewage and adsorb pollutants in water with its large specific surface area and adsorption property. In addition, it also has great potential in gas purification, catalyst carriers and other aspects. So it will contribute to the development of the chemical and environmental protection industries.

Conclusión

Because of their unique physical and chemical properties, graphite blocks play a significant role in various fields. You can use them whether as structural or functional materials, and they strongly promote the development of the industry. With the advancement of technology, it is expected to achieve breakthroughs in emerging fields such as quantum computing and biomedicine.
